HTTP Connector

Overview

HTTP Connector can receive logs from various devices and log sources via HTTPS connection.

Warning You can create only ONE HTTP connector. If you need to integrate with multiple devices using the HTTP connector, please add a different authentication block for each device within the same HTTP connector.

Authentication

To secure the HTTPS endpoint, ensure it only processes requests from authenticated sources. The following modes of authentication are available:

Basic

With basic authentication, define the username and password during the setup. The entity making the POST request to Bloo must include a header of the format Authorization: Basic <base64_string>. The string after the Basic keyword follows RFC 7617, which means the sender must encode the value of username:password using base64. Bloo only accepts requests with a matching username and password.

Bearer

With bearer authentication, define the bearer token value during the setup. The entity making the POST request to Bloo must include a header of the format Authorization: Bearer <token_value>. Bloo will only accept requests with matching bearer tokens.

Shared Secret

With shared secret authentication (token authentication), configure the header name and shared secret value during the setup. The entity making the POST request to Bloo must include the same header name and shared secret value in its request header. Bloo will only accept payloads with headers and secrets that match your configuration.

This method is called shared-secret because the secret is shared between Bloo and the entity making the POST request — for example, a third-party SaaS tool emitting log events.

HMAC

With HMAC authentication, configure the header name and secret key value during the setup. The entity making the POST request to Bloo must hash the payload using the hashing algorithm and secret key specified. This signature is then included in the header. On receiving the request, Bloo will independently hash the payload using the same hashing algorithm and secret key. Only requests with matching signatures will be accepted.

Supported Log Formats

• JSON
• New line separated JSON string/string

Create a Connector

All connector configuration is done from the Datasource page in Bloo. Follow the steps below to create an HTTP connector:

1. Fill out the connector form and enter the Connector Name.



2. A single HTTP connector supports multiple modes of authentication. Instead of creating different connectors for different log sources, create a single HTTP connector with multiple authentication modes, then use an authentication mode-specific Endpoint URL to send the logs to Bloo.



3. Click the Add button to add an authentication mode.



4. Once the authentication mode is added, change the authentication type and modify the authentication mode-specific fields. To add multiple authentication modes, click the Add button again and modify the added authentication mode as required.



5. Once you have added and modified the authentication mode, copy the Endpoint URL and use it to ingest logs to Bloo via this authentication method.



6. Click the Next button to create the connector.



7. Bloo will validate the configuration automatically.

8. Navigate to Collection Status and confirm the connector is listed with a status of Active.

Confirmed When the connector appears in Collection Status with status Active, it is configured successfully and ready to receive data.

Sending Data to Bloo

Two methods are supported for forwarding logs through the HTTP connector:

• Bulk logs
• Single log

Bulk Logs

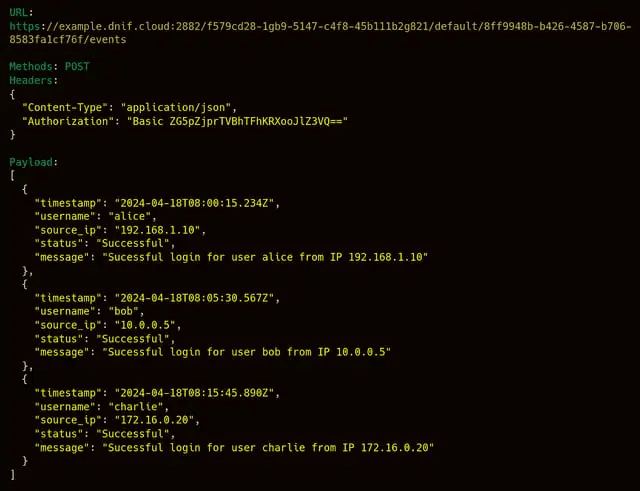

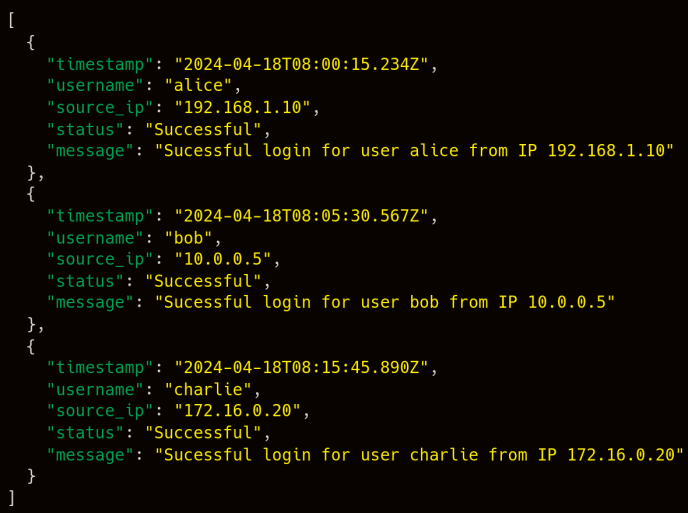

Using bulk logs API endpoint, you can forward logs in a bunch. Multiple logs can be forwarded at a time.

Field	Description
URL	https://example.dnif.cloud:2882/f579cd28-1gb9-5147-c4f8-45b111b2g821/default/8ff9948b-b426-4587-b706-8583fa1cf76f/events Note: The URL for bulk logs ends with /events
Method	POST
Headers	The header's value differs depending on the current authentication mode. Refer to the Authentication section above. The common header is: Note: Content-Type: application/json

Single Log

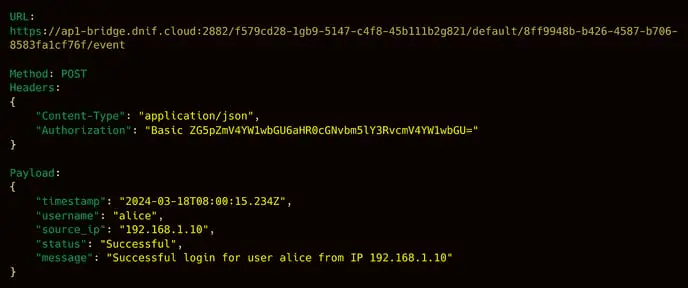

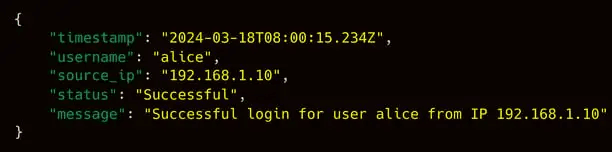

Using the single log API endpoint, you can forward a single log event at a time.

Field	Description
URL	https://example.dnif.cloud:2882/f579cd28-1gb9-5147-c4f8-45b111b2g821/default/8ff9948b-b426-4587-b706-8583fa1cf76f/event Note: The URL for a single log ends with /event
Method	POST
Headers	The header's value differs depending on the current authentication mode. Refer to the Authentication section above.

Configurations

Using the HTTP Connector, follow the configuration requirements to forward logs to Bloo.

Field	Description
Connector Name	Enter a name for the connector.
Authentications	Add various Authentication modes to be supported.
Number of Workers	Number of threads to publish logs.

Authentication Mode-Specific Fields

All authentication modes have the following common fields:

Field	Description
Name	The name of the Authentication mode for reference.
Endpoint URL	The generated endpoint URL for the specific Authentication Mode.
Authentication Type	Authentication mode — either Basic, Bearer, SharedSecret, or HMAC.

Basic

Field	Description
Username	Enter a Username. Note: Save this username safely as it will be used for authentication.
Password	Enter a Password. Note: Save this password safely as it will be used for authentication.

Bearer

Field	Description
Bearer token	Enter a Token (Password). Note: Save this token safely as it will be used for authentication.

Shared Secret

Field	Description
Header Name	Enter a Header Name. Note: Include this header in the Authentication request.
Secret	Enter a Secret. Note: Save this Secret safely as it will be used for authentication.

HMAC

Field	Description
Header Name	Enter a Header Name. Note: Include this header in the Authentication request.
Secret Key	Enter a Secret Key. Note: Use this Secret Key to hash the request payload.
Hashing Algorithm	Select a Hashing Algorithm for generating the signature.

Optional Configuration

The following optional configurations can be done based on requirements.

Field	Description
Log Level	Set the log level. 0: DEBUG 1: INFO 4: WARNING 5: ERROR 6: CRITICAL
Number of Threads	Number of threads to publish logs.
Size limit	Size limit for creating bunching of logs to be sent.
Wait Time	Max time to wait for log bunching in seconds.
