Create an SQL Block

Bloo supports query processing and analysis with SQL. You can interpret the data using SQL for targeted analysis and fetch relevant data.

• SQL Block could be the first block to be added in Workbook.
• The output data from the SQL block can be used as an input to other blocks such as DQL / Code / Signal block etc to generate an output.
• All the standard SQL functions and operations are allowed.

How to add an SQL Block?

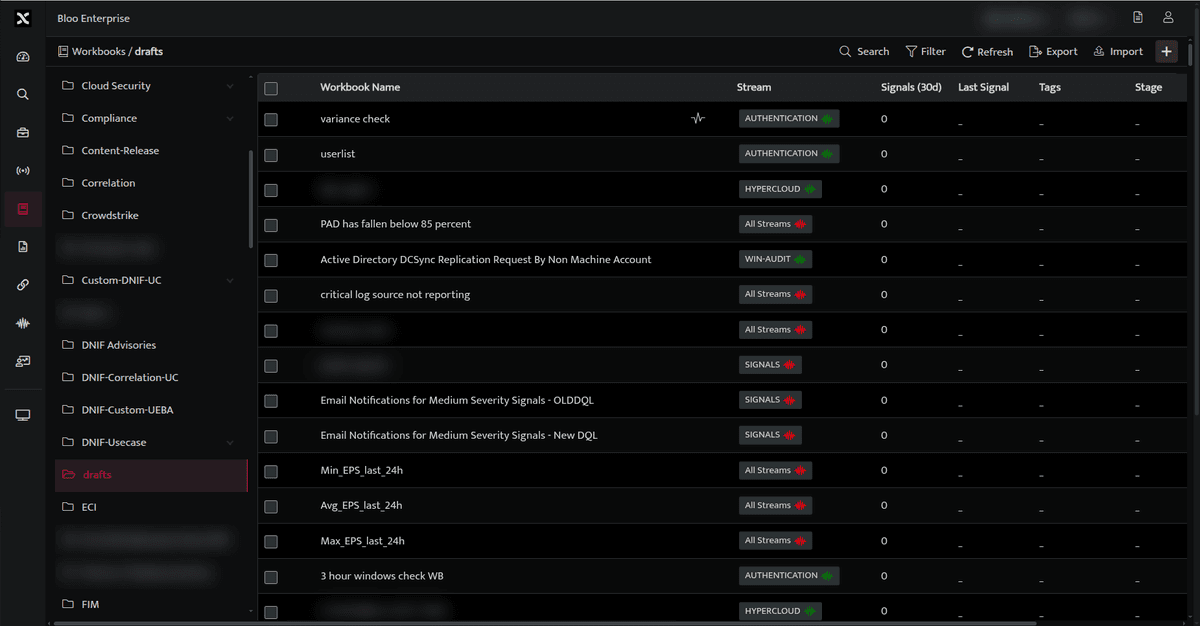

• Hover on the Workbooks icon on the left navigation bar, it will display the folder wise view of existing workbooks in the tenant (previously known as cluster).

• Click the plus icon on the Workbook page and select SQL Block from the list, the following screen will be displayed.

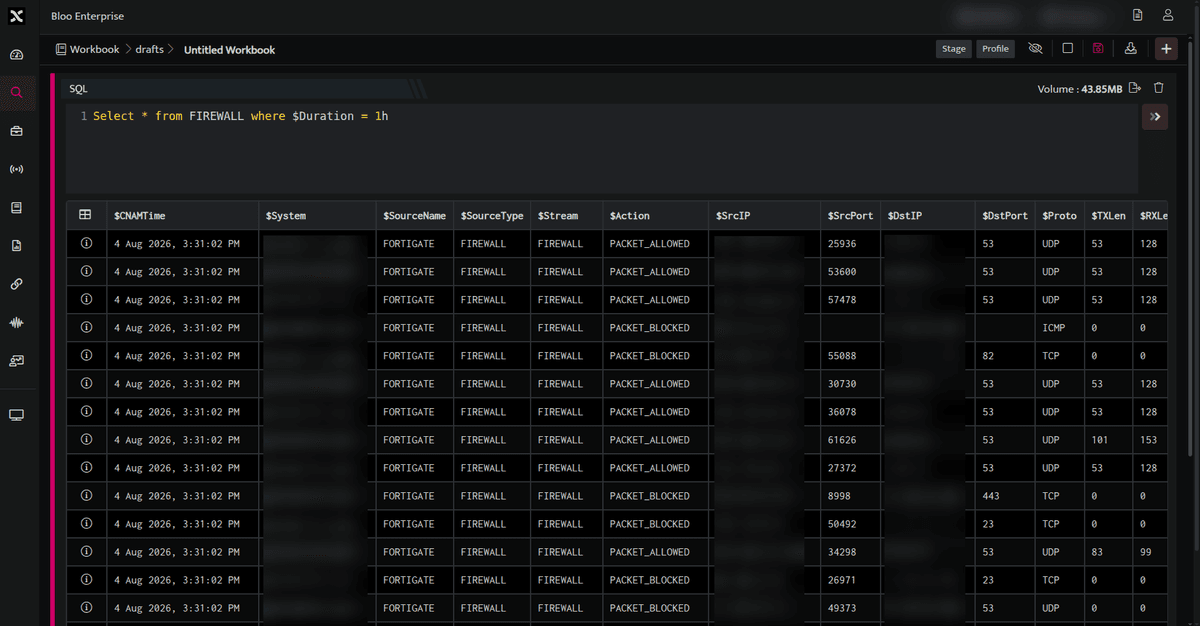

• Enter the query and click Run to execute the query, the result dataset will be displayed.

Example SQL Query

SELECT *
FROM FIREWALL
WHERE $Duration = 1hCopy

In the above example, the query result is displaying all the details of Stream= Firewall within an hour.

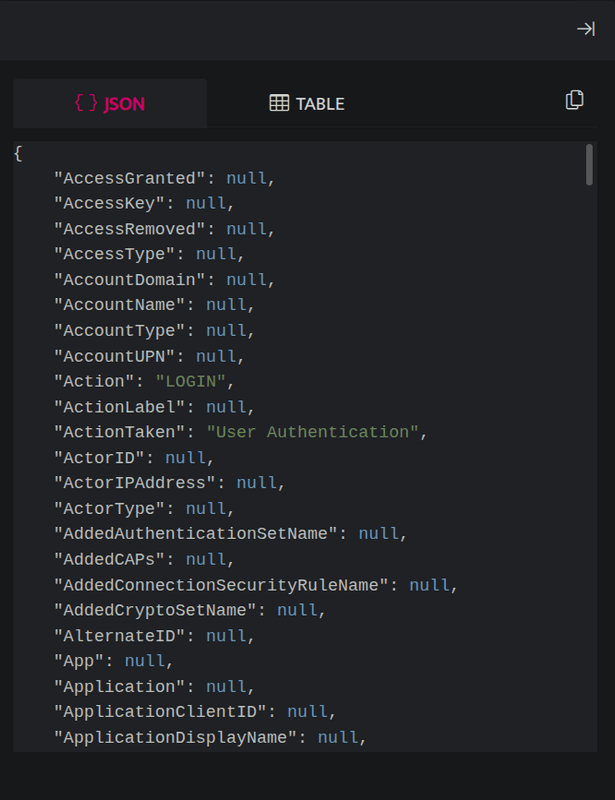

• Click Information icon, to view log details. You can view the log details in JSON and TABLE format.

• Click Copy icon, to copy the details to clipboard.

SQL Block Functions

Icons	Functionality
	Used to filter the query result based on your requirement.
	User to delete the block
	Used to export logs in CSV format

For more details on Workbooks, refer to Create a Workbook.
