AlienVault OTX

Automation Guide for Bloo

1. Overview

AlienVault Open Threat Exchange (OTX) is the world's most authoritative open threat information sharing and analysis network. OTX provides access to a global community of threat researchers and security professionals. 200,000 participants in 140 countries contribute over 20 million threat indicators daily. OTX allows anyone in the security community to actively discuss, research, validate, and share the latest threat data, trends, and techniques.

OTX provides information on the reliability of threat information, the reporter of the threat, and other details of threat investigations. OTX data can be used to enhance threat detection capabilities of security monitoring systems such as Bloo.

2. Prerequisites

You can sign up and set up an OTX account using your email address, or you can use your existing Twitter account.

To create an OTX account:

1. Go to https://otx.alienvault.com

2. In the upper-right corner of the home page, click Sign Up.

3. Enter your details in the form that appears and click Sign Up.

4. Once you have logged in to the OTX interface, click Settings to view your user profile and access the Settings page.

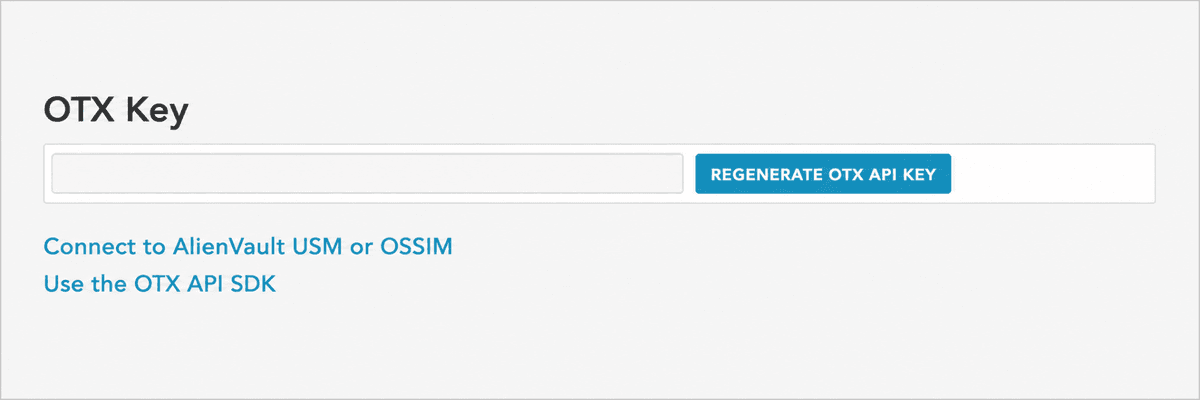

5. On the Settings page you can access your OTX account key. This key is used to authenticate API calls to AlienVault OTX.

3. Configuration

• Follow the initial configuration steps in How to Configure Automation? — refer to the Bloo Knowledge Base.

• Click the edit icon to add details.

Field	Description
API Key	AlienVault OTX API Key

• Enter the above details and click Save.

Note: API Usage and Rate LimitsOTX is completely free to use. There are no paid tiers.With an API key: up to 10,000 requests per hour.Without an API key: up to 1,000 requests per hour.The API key is free and is generated from your OTX account Settings page.

4. Lookups Integrated with AlienVault OTX

4.1 Retrieve Domain Reports

This function returns a complete report of all threat indicators for a given domain, including data from all the sub-reports.

Function name: get_domain_report

Input

A domain name.

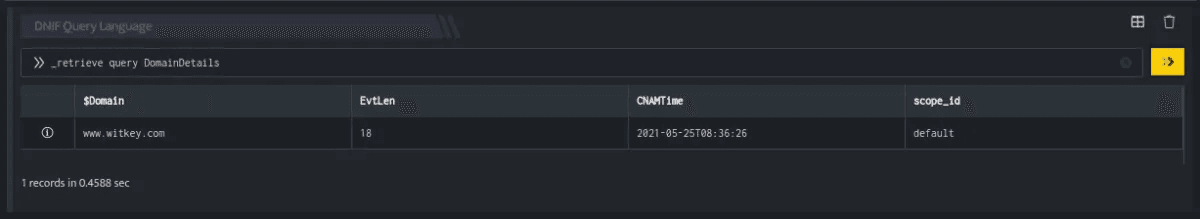

_retrieve query DomainDetailsCopy

The DomainDetails is a custom event store created to demonstrate this example. The _retrieve directive fetches the Domain field for each event in the DomainDetails (custom) event store. The output looks like this:

Output

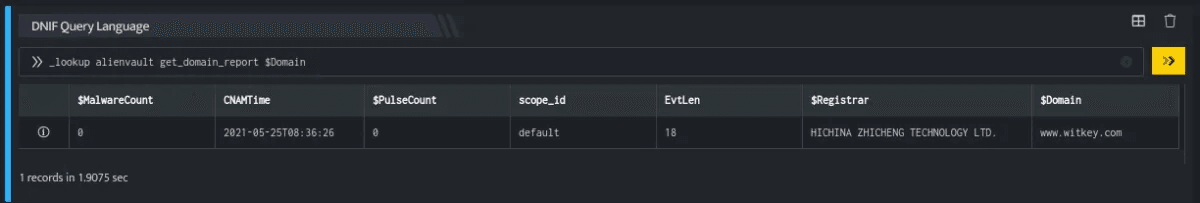

_lookup alienvault get_domain_report DomainCopy

The _lookup directive calls the get_domain_report function of the AlienVault plugin. Domain is passed as a parameter. This report contains details about the domain, the source domain, pulse count, and so on. The output looks like this:

The lookup call returns output in the following structure for available data:

Field	Type	Description
Domain	text	Source domain for lookup
PulseCount	number	Number of pulses that reference the given domain
MalwareCount	number	Malware count for the domain
City	text	City in which the domain is registered
Country	text	Country in which the domain is registered
Org	text	The organization or ISP associated with the domain's hosting server
Registrar	text	Name of the domain's official registrar

4.2 Retrieve IP Address Details

This function returns a complete report of all threat indicators for a given IP address.

Function name: get_ip_report

Input

A valid IPv4 address in dotted quad notation. For the time being only IPv4 addresses are supported.

_fetch SrcIP from event where Stream=FIREWALL limit 1Copy

The _fetch directive retrieves SrcIP (source IP address) for each event. The result set is limited to the latest event. The output looks like this:

Output

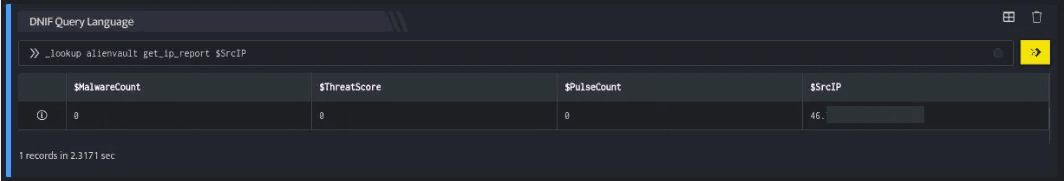

_lookup alienvault get_ip_report SrcIPCopy

The _lookup directive calls the get_ip_report function of the AlienVault plugin. SrcIP is passed as a parameter. This report contains details about the IP address such as malware count and threat score. The output looks like this:

The lookup call returns output in the following structure for available data:

Field	Type	Description
IP	text	Source IP for lookup
MalwareCount	number	Malware count for the IP address
ThreatScore	number	AlienVault Labs threat score for the given IP address
PulseCount	number	AlienVault pulse count

4.3 Retrieve Host Details

This function returns a complete report of all threat indicators for a given hostname.

Function name: get_hostname_report

Input

_retrieve query HostDetailsCopy

The HostDetails is a custom event store created to demonstrate this example. The search query retrieves the DevSrcIP field for each event in the HostDetails (custom) event store. The output looks like this:

Output

_lookup alienvault get_hostname_report DevSrcIPCopy

The _lookup directive calls the get_hostname_report function of the AlienVault plugin. DevSrcIP is passed as a parameter. This output contains details about the device such as the hostname, pulse count, malware count, and so on. The output looks like this:

The lookup call returns output in the following structure for available data:

Field	Type	Description
Hostname	text	Host name being queried
PulseCount	number	Pulse count for the hostname
MalwareCount	number	Malware count for the hostname

4.4 Retrieve URL Scan Reports

This function returns the following information for the given URL:

• Historical geographic information

• Threat indicators gathered from the OTX community pulse stream

• AlienVault Labs' URL analysis results

Function name: get_url_report

Input

A URL for which AlienVault will retrieve the most recent report. You may also specify a scan_id (sha256-timestamp as returned by the URL submission API) to access a specific report.

_retrieve query UrldetailsCopy

The Urldetails is a custom event store created to demonstrate this example. The _retrieve directive fetches the Url field for each event in the Urldetails (custom) event store. The output looks like this:

Output

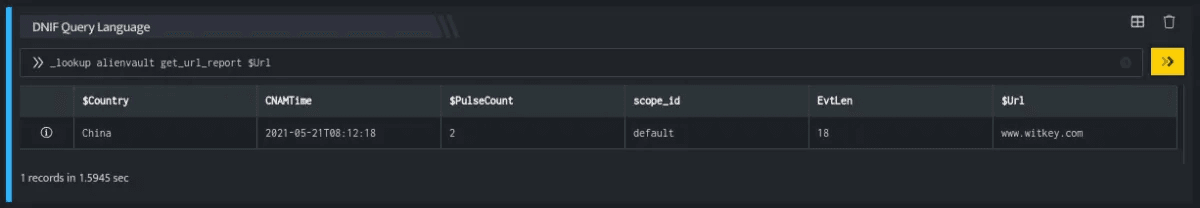

_lookup alienvault get_url_report UrlCopy

The _lookup directive calls the get_url_report function of the AlienVault plugin. Url is passed as a parameter. This report contains details about the URL, its pulse count, the country it belongs to, and so on. The output looks like this:

The lookup call returns output in the following structure for available data:

Field	Type	Description
Url	text	The URL being queried
PulseCount	number	AlienVault pulse count
Country	text	Country in which the given URL's hosting server is deployed

4.5 Retrieve Hash Reports

This function returns the metadata about the file hash, as well as dynamic and static analysis of the given file hash. The SHA1, MD5, or SHA256 hashing algorithm (formats) are acceptable.

Function name: get_hash_report

Input

A SHA1, MD5, or SHA256 hash will retrieve the most recent report on a given sample.

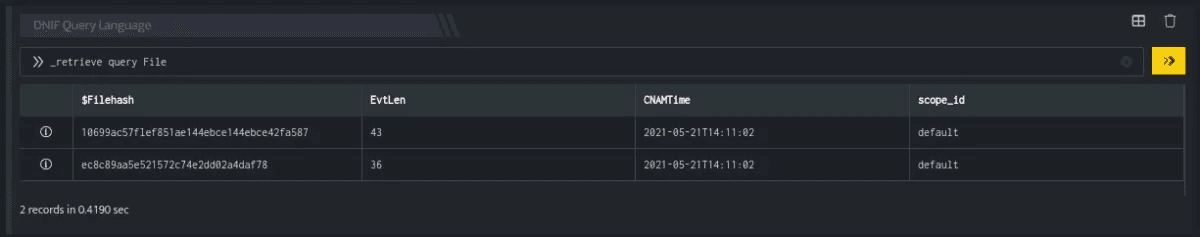

_retrieve query FileCopy

The File is a custom event store created to demonstrate this example. The _retrieve directive fetches the Filehash field for each event in the File (custom) event store. The output looks like this:

Output

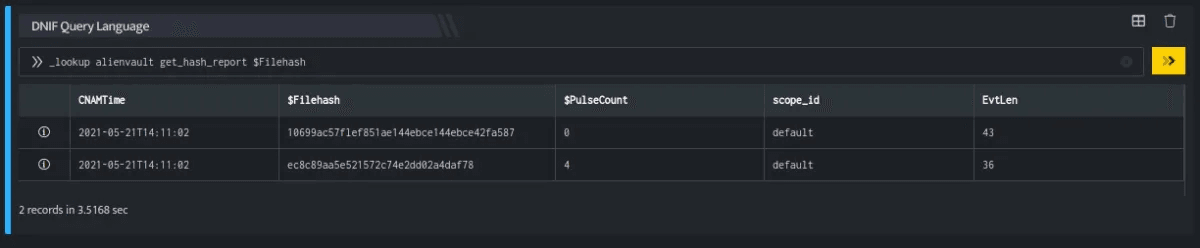

_lookup alienvault get_hash_report FilehashCopy

The _lookup directive calls the get_hash_report function of the AlienVault plugin. Filehash is passed as a parameter. This report contains details of the file hash, file SHA256 hash, MD5 sum of the file, and so on. The output looks like this:

The lookup call returns output in the following structure for available data:

Field	Type	Description
Hash	text	File hash to be searched
PulseCount	number	AlienVault pulse count
Filesize	text	File size (in bytes) of the given hash's malware file
FileType	text	File type of the given hash's malware file
SHA1	text	SHA1 hash of the given hash's malware file
SHA256	text	SHA256 hash of the given hash's malware file
