Duration

Duration

The duration lets you specify the start and end timestamp for retrieving events

The following table lists all the valid duration names and values.

Duration name	Value
Month	M (uppercase)
day	d (lowercase)
week	w (lowercase)
hour	h (lowercase)
minute	m (lowercase)

On the Search page, by default, we have a duration of five minutes (based on the time you opened the search page) which can be modified using the GUI. However, this can be overridden using the two options below:

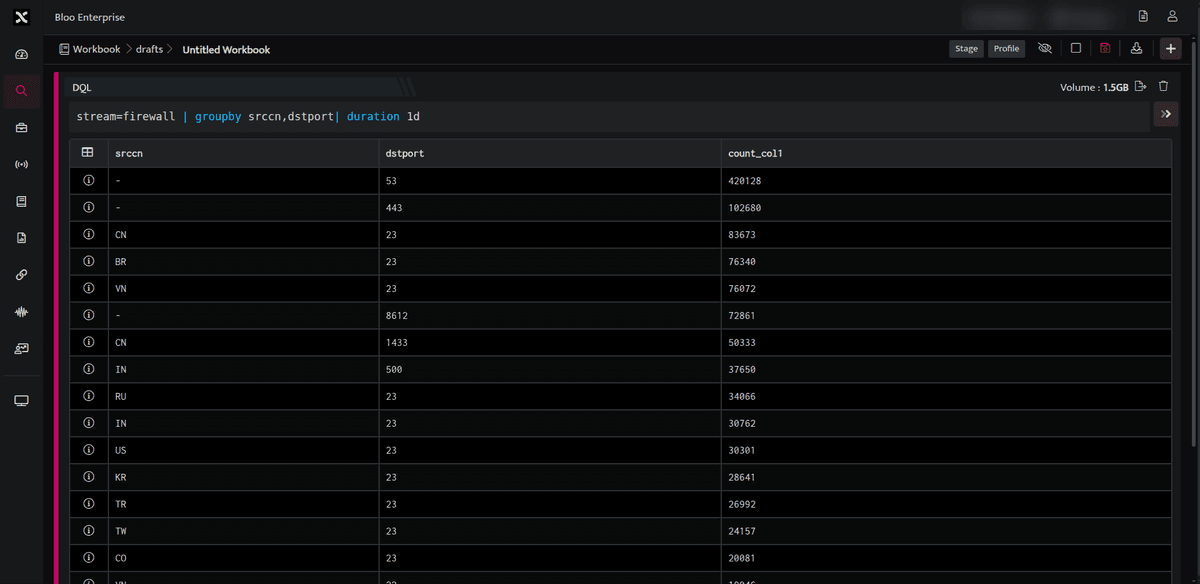

stream=firewall | groupby srccn,dstport| duration 1dCopy

Here,

• Stream is Firewall
• Groupby function allows to organize similar data into groups i.e. groupby source country.
• Duration field helps you to retrieve records for the specified duration

The above query should retrieve all fields for each event where the stream is a firewall, retrieve all records for one day (i.e. specified duration) and group it as per the destination port and source country as shown below:

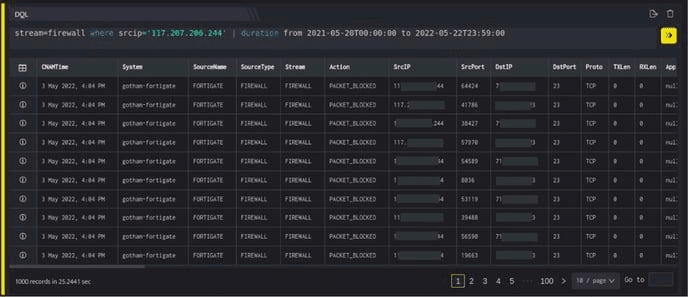

stream=firewall where srcip='10.35.38.1' | duration from 2021-05-20T00:00:00 to 2022-05-22T23:59:00Copy

In the second example, Duration from field specifies the start date and time and end date and time for which the records should be retrieved.
