Domain Tools

Automation Guide for Bloo

1. Overview

DomainTools helps security analysts turn threat data into threat intelligence. It takes indicators from your network, including domains and IP addresses, and connects them with nearly every active domain on the internet. These connections perform risk assessments, help profile attackers, guide online fraud investigations, and map cyber activity to the attacker's infrastructure.

DomainTools collects Open Source Intelligence (OSINT) data from many sources, along with historical records, and stores it in a central database. It then indexes and analyzes the OSINT data based on various connection algorithms to deliver actionable intelligence, including domain scoring and forensic mapping.

2. Prerequisites

• You will need a DomainTools Enterprise API username and API key to complete the configuration.
• DomainTools typically provides access to obtain the API credentials by creating an account for the primary point of contact in your organization. For more information, visit https://www.domaintools.com/

3. Configuration

• Follow the initial configuration steps in How to Configure Automation? — refer to the Bloo Knowledge Base.

• Click the edit icon to add details.

Field	Description
API Key	Enter DomainTools API Key
Domain Tools Username	Enter DomainTools Username

• Enter the above details and click Save.

4. DomainTools Lookup Plugin Functions

4.1 Retrieve Parsed Information

This function returns parsed information extracted from the most recent raw WHOIS record.

Function name: get_parsed_whois

Input

A domain name.

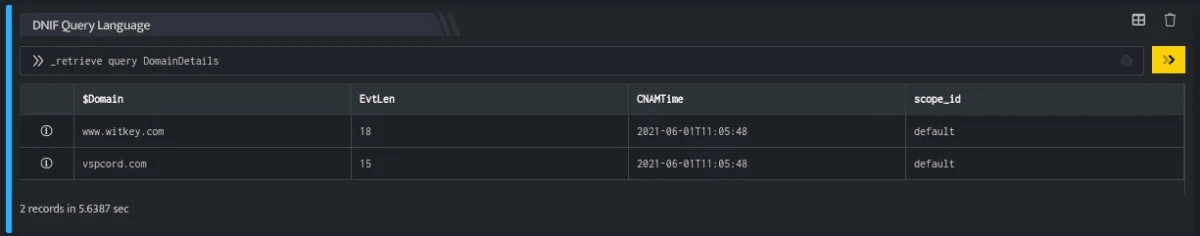

_retrieve query DomainDetailsCopy

The DomainDetails is a custom event store created to demonstrate this example. The _retrieve directive fetches the Domain field for each event in the DomainDetails (custom) eventstore. The output is as shown below:

Output

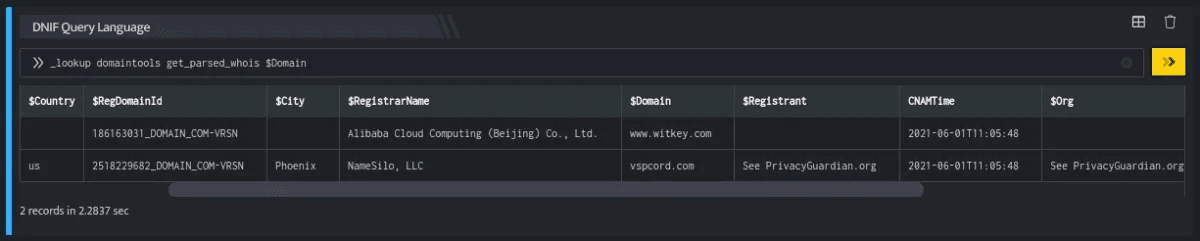

_lookup domaintools get_parsed_whois DomainCopy

In the pipelined query function, the _lookup directive calls the get_parsed_whois function of the domaintools plugin. Domain is passed as a parameter to the function. This report contains details about the domain, the source domain, country in which the domain is registered, age of the domain and so on. The output is as shown below:

The Lookup call returns output in the following structure for available data:

Field	Type	Description
Domain	text	Source domain for lookup
Org	text	Registrant Organisation for the domain
City	text	City in which the domain is registered
DomainAge	text	Age of the Domain
CreatedTime	text	Domain registration date
Country	text	Country in which the domain is registered
ExpiredTime	text	Domain registration expiry duration
RegDomainId	text	Domain Registry Id
RegistrarName	text	Name of the Registrar
Registrant	text	Name of the Registrant

4.2 Retrieve Domain Analytics Data

This function returns risk scores and threat predictions based on DomainTools Proximity and Threat Profile algorithms. It helps in deeper investigation of a domain.

Function name: get_domain_analytics

Input

A domain name.

_retrieve query DomainDetailsCopy

The DomainDetails is a custom event store created to demonstrate this example. The _retrieve directive fetches the Domain field for each event in the DomainDetails (custom) eventstore. The output is as shown below:

Output

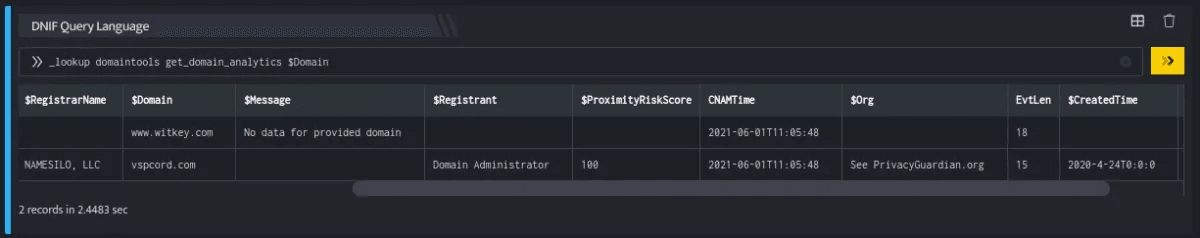

_lookup domaintools get_domain_analytics DomainCopy

In the pipelined query function, the _lookup directive calls the get_domain_analytics function of the domaintools plugin. Domain is passed as a parameter to the function. This report contains details about the domain, the source domain, overall risk score, proximity risk score for the queried domain and so on. The output is as shown below:

The Lookup call returns output in the following structure for available data:

Field	Type	Description
Domain	text	Source domain for lookup
OverallRiskScore	number	Overall Risk Score for the queried domain
ProximityRiskScore	number	Proximity Risk Score for the queried domain
Org	text	Registrant Organisation for the domain
State	text	State in which the domain is registered
DomainAge	text	Age of the Domain
CreatedTime	text	Domain registration date
Country	text	Country in which the domain is registered
ExpiredTime	text	Domain registration expiry duration
RegistrarName	text	Name of the Registrar
Registrant	text	Name of the Registrant
ThreatProfileRiskScore	number	Threat Profile risk Score for the queried domain

4.3 Retrieve IP Analytics Data

This function returns a complete report of all threat indicators for a given IP address.

Function name: get_ip_analytics

Input

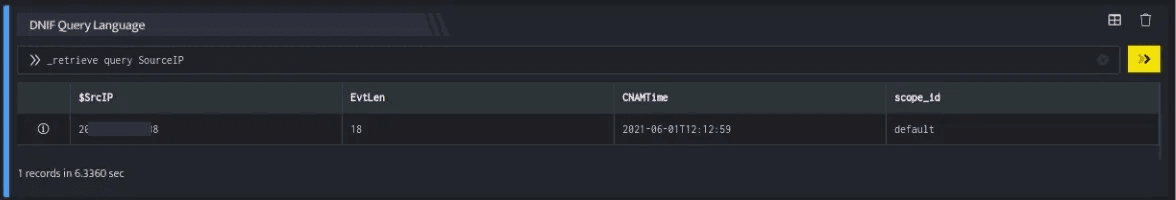

_retrieve query SourceIPCopy

The SourceIP is a custom event store created to demonstrate this example. The _retrieve directive fetches the SrcIP field for each event in the SourceIP (custom) eventstore. The output is as shown below:

Output

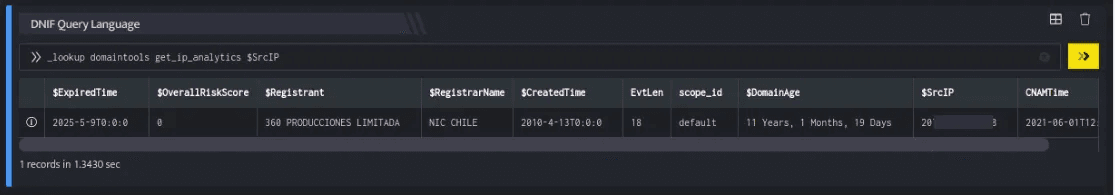

_lookup domaintools get_ip_analytics SrcIPCopy

In the pipelined query function, the _lookup directive calls the get_ip_analytics function of the domaintools plugin. SrcIP is passed as a parameter to the function. This report contains details about the source domain, overall risk score, proximity risk score for the queried SrcIP and so on. The output is as shown below:

The Lookup call returns output in the following structure for available data:

Field	Type	Description
Domain	text	Source domain for lookup
OverallRiskScore	number	Overall Risk Score for the queried IP
ProximityRiskScore	number	Proximity Risk Score for the queried IP
Org	text	Registrant Organisation for the Domain
State	text	State in which the domain is registered
DomainAge	text	Age of the Domain
CreatedTime	text	Domain registration date
Country	text	Country in which the domain is registered
ExpiredTime	text	Domain registration expiry duration
RegistrarName	text	Name of the Registrar
Registrant	text	Name of the Registrant
ThreatProfileRiskScore	number	Threat Profile risk Score for the queried IP
