Active Directory

Automation Guide for Bloo

1. Overview

Active Directory (AD) is a directory service that Microsoft developed for Windows domain networks. It is included in most Windows Server operating systems as a set of processes and services.

This guide explains how to configure the Active Directory automation in Bloo and how to use each of its built-in functions to look up user details, manage group memberships, enable or disable user accounts, and retrieve user data.

2. Prerequisites

Before setting up the Active Directory automation, complete the initial automation configuration in Bloo. Follow the steps in the link below:

• How to Configure Automation? — Bloo Knowledge Base

3. Configuration

Once the initial setup is done, follow the steps below to configure the Active Directory automation in Bloo.

1. Go to the Automations section in the Bloo console.

2. Click the Edit icon to open the configuration form.

3. Fill in the fields as described in the table below, then click Save.

Configure Active Directory in Bloo

Field	Description
Configuration Name	Enter a name for this configuration. This is how it will appear in Bloo.
Server IP Address	Enter the IP address of your Active Directory server.
Server Port	Enter the port number of your Active Directory server.
Login User Name	Enter the username of an account that has administrative rights on the Active Directory server.
Login User Password	Enter the password for the username provided above.
Domain	Enter the domain of the Active Directory.
Base Distinguished Name	Enter the base distinguished name (Base DN). This tells Bloo where to start searching in your Active Directory structure — for example: DC=company,DC=com

**Warning: Windows Server 2025 (New Deployments Only)**If your Active Directory domain controller is running a fresh installation of Windows Server 2025, plain username and password connections on port 389 will be rejected by default.To connect successfully, use port 636 (LDAPS — secure LDAP). This requires a valid TLS/SSL certificate to be installed on the domain controller.Note: This only applies to new Windows Server 2025 installations. Servers upgraded from an earlier Windows Server version are not affected.

4. Active Directory Plugin Functions

Once the Active Directory automation is configured in Bloo, you can use the following built-in functions in your workbooks. Each function connects to Active Directory and performs a specific action on a user or group.

4.1 Get User Details

This function retrieves detailed information about a user from Active Directory.

Function name: get_userinfo

Input

The input is a user whose details you want to look up. The example below fetches users from a custom event store called UserLookupAD.

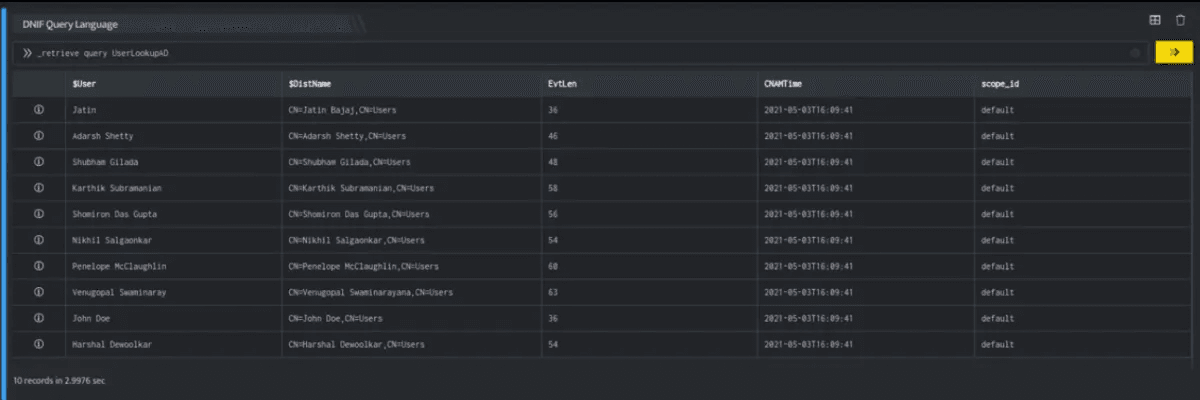

_retrieve query UserLookupADCopy

The _retrieve command fetches the User field for each event stored in the UserLookupAD event store. The output looks like this:

Output

Once you have the input, use the command below to retrieve the user details from Active Directory:

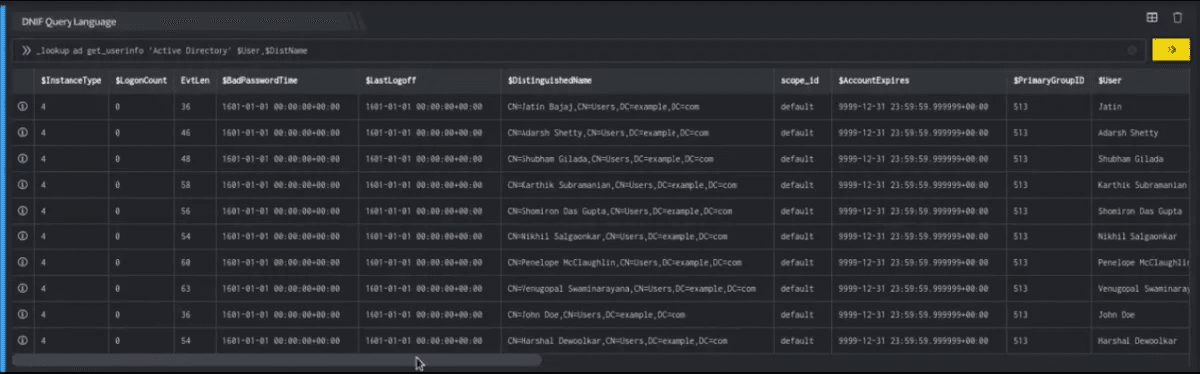

_lookup ad get_userinfo 'Active Directory' $User, $DistNameCopy

This command calls the get_userinfo function of the Active Directory plugin. It passes the $User and $DistName values as inputs and returns a report with detailed information about each user. The output looks like this:

The report contains details about the user such as their Employee ID, Department, and Location. The full list of fields returned is shown in the table below:

Field	Type	Description
User	text	Source user for lookup
AccountExpires	text	Account registration expiry date
BadPasswordTime	date	The last time an attempt was made to log on to this account using an incorrect password
BadPwdCount	number	The number of times the user tried to log on with an incorrect password
CN	text	Common name for the user
CountryCode	number	Country code of the queried user
DisplayName	text	Display name of the Active Directory user
DistinguishedName	text	Distinguished name of the user
GivenName	text	Given name of the user
InstanceType	text	User instance type
LastLogoff	text	The last time the user logged off
LastLogon	text	The last time the user logged on
LastLogonTimestamp	date	The last time the user logged on to the domain
LogonCount	number	The number of times the account has successfully logged on
Name	text	Name of the user
PrimaryGroupID	text	Primary group ID of the user
PwdLastSet	text	The date and time the account password was last changed
UserPrincipalName	text	User principal name
DNSHostName	text	DNS host name
LocalPolicyFlags	text	Flags that determine where a machine gets its policy
OperatingSystem	text	The operating system name
OperatingSystemVersion	text	The version of the operating system
ServicePrincipalName	text	Service principal name
Department	text	The department name of the user
Manager	text	The manager name of the user
MemberOf	text	The group name to which the user belongs
UserWorkstations	text	The machines from which the user is allowed to log on, listed by DNS or NetBIOS name

4.2 Add User to Group

This function adds a user to a pre-defined group in Active Directory.

Function name: add_to_group

Input

The input is the user you want to add to a group. The example below fetches users from a custom event store called UserInfoAD.

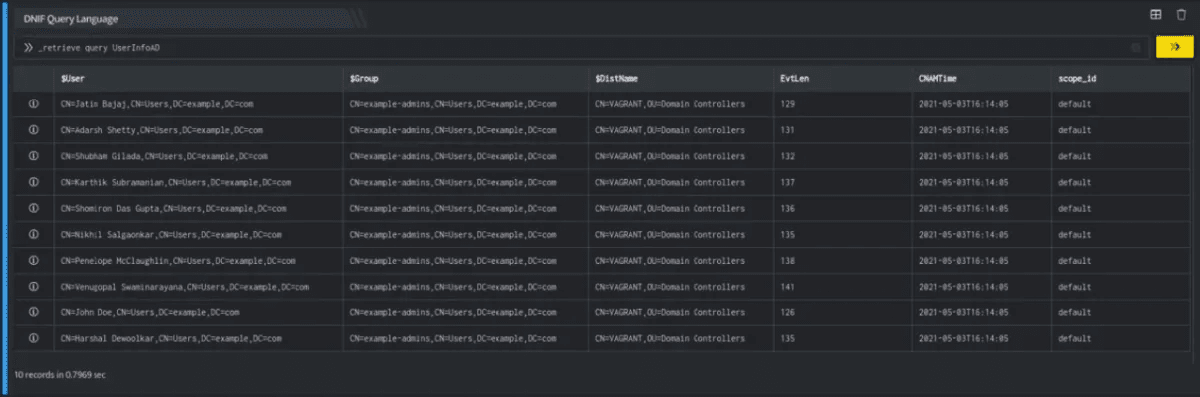

_retrieve query UserInfoADCopy

The _retrieve command fetches the $User field for each event in the UserInfoAD event store. The output looks like this:

Output

Use the command below to add the user to a group in Active Directory:

_trigger api ad add_to_group 'Active Directory' $User, $GroupCopy

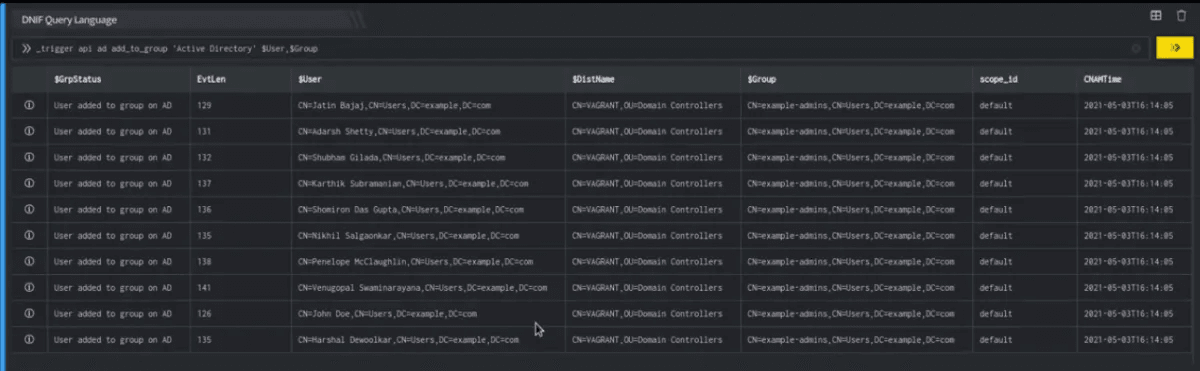

This command calls the add_to_group function. It passes the $User and $Group values as inputs. The output shows the user that was added, the group they were added to, and the status of the action. The output looks like this:

4.3 Remove User from Group

This function removes a user from a pre-defined group in Active Directory.

Function name: remove_from_group

Input

The input is the user you want to remove from a group. The example below fetches $Users from the UserInfoAD event store.

_retrieve query UserInfoADCopy

The output looks like this:

Output

Use the command below to remove the user from a group in Active Directory:

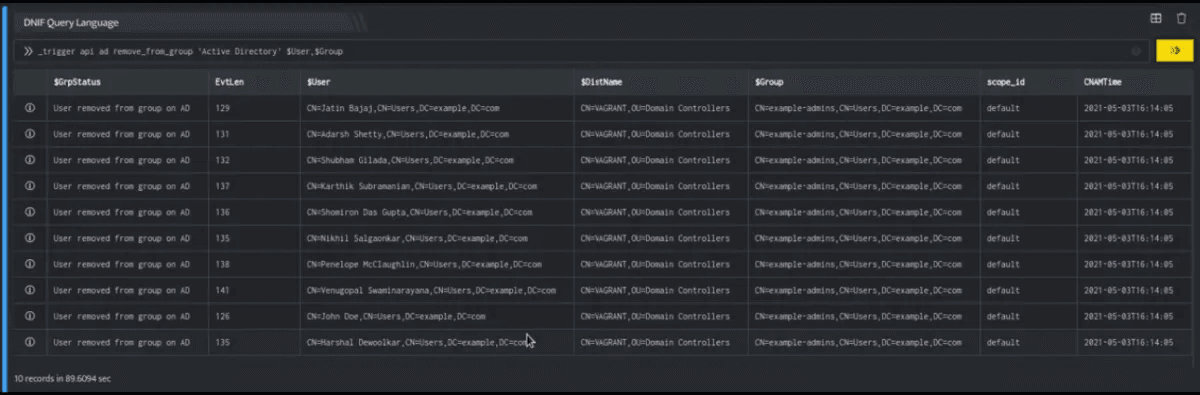

_trigger api ad remove_from_group 'Active Directory' $User, $GroupCopy

This command calls the remove_from_group function. It passes the $User and $Group values as inputs. The output shows the user that was removed, the group they were removed from, and the status of the action. The output looks like this:

4.4 Enable User

This function enables a user account in Active Directory.

Function name: enable_user

Input

The input is the user you want to enable. The example below fetches users from a custom event store called UserEnableAD.

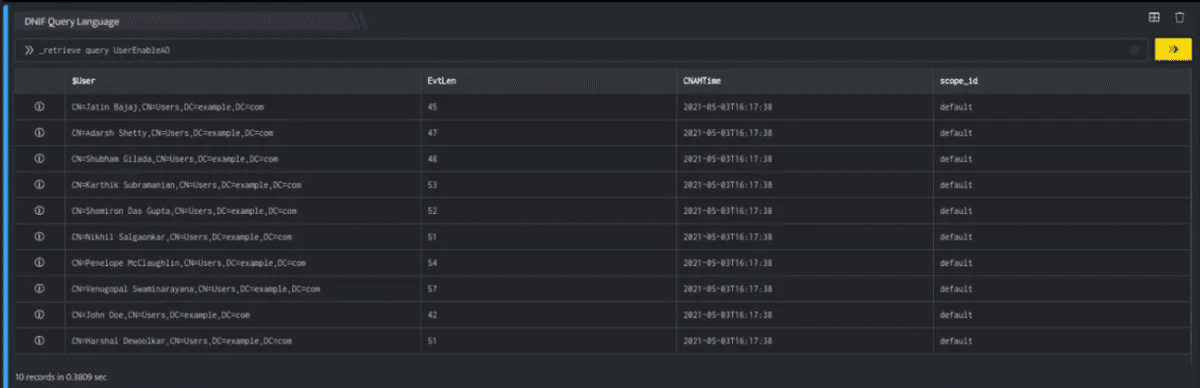

_retrieve query UserEnableADCopy

The _retrieve command fetches the $User field for each event in the UserEnableAD event store. The output looks like this:

Output

Use the command below to enable the user in Active Directory:

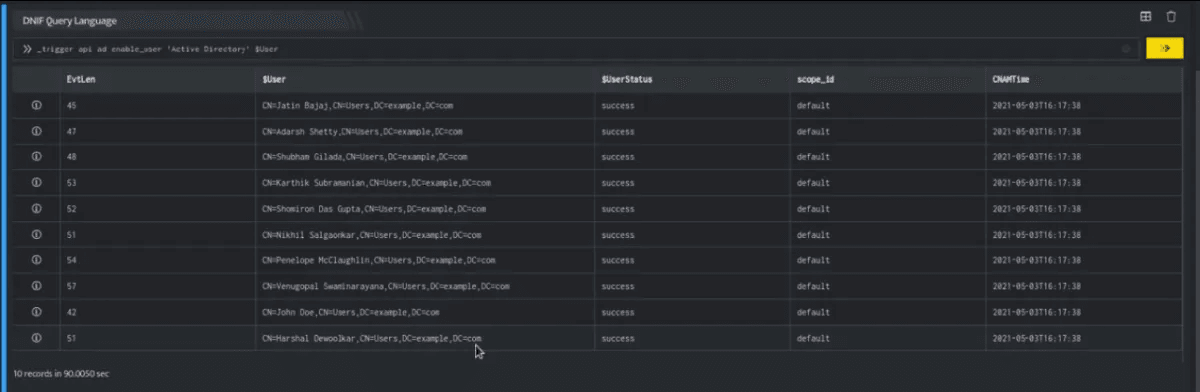

_trigger api ad enable_user 'Active Directory' $UserCopy

This command calls the enable_user function. It passes $User as the input. The output shows the user that was enabled and the status of the action. The output looks like this:

4.5 Disable User

This function disables a user account in Active Directory.

Function name: disable_user

Input

The input is the user you want to disable. The example below fetches $Users from the UserEnableAD event store.

_retrieve query UserEnableADCopy

The output looks like this:

Output

Use the command below to disable the user in Active Directory:

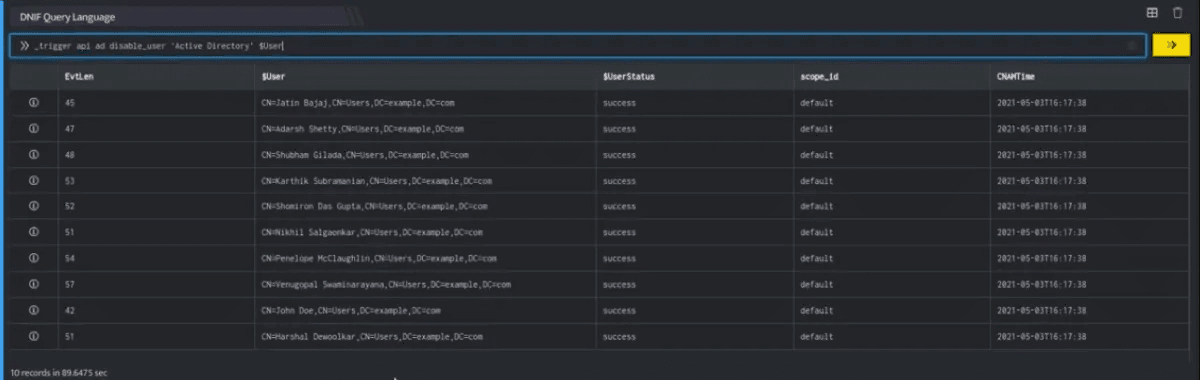

_trigger api ad disable_user 'Active Directory' $UserCopy

This command calls the disable_user function. It passes $User as the input. The output shows the user that was disabled and the status of the action. The output looks like this:

4.6 Retrieve User Intel Data

This function retrieves user intelligence data stored in Active Directory. Active Directory is a pre-configured integration in Bloo that stores its data as a dataset in an event store. This is a scheduled event store that can be used to fetch user intel data.

Function name: import_user_intel

Input

Use the command below to retrieve a list of all existing event stores:

_retrieve listCopy

The output shows all available event stores. The output looks like this:

Output

Use the command below to fetch the user intel data from the Active Directory event store:

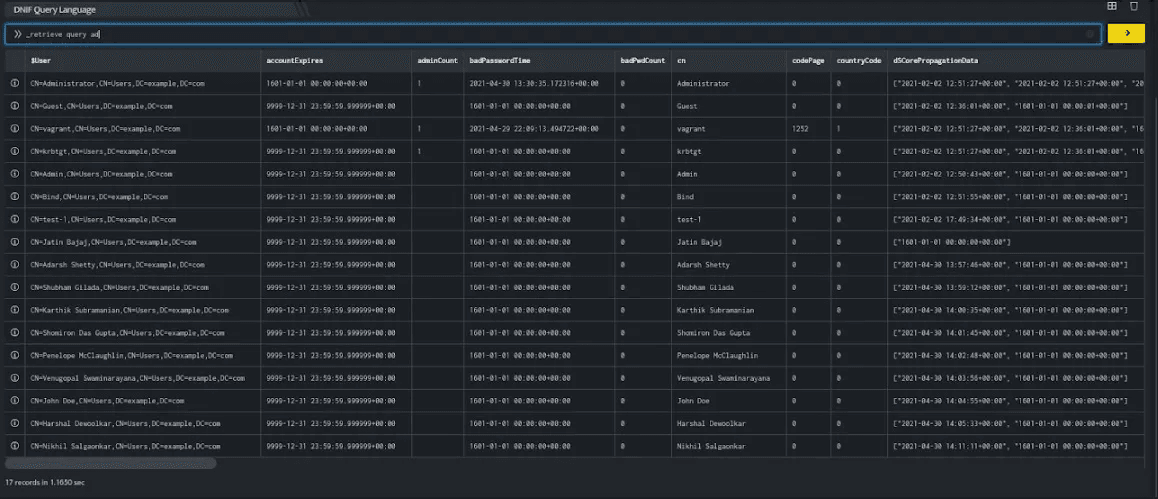

_retrieve query adCopy

This command calls the import_user_intel function of the Active Directory plugin to fetch user intel data. The output looks like this:
